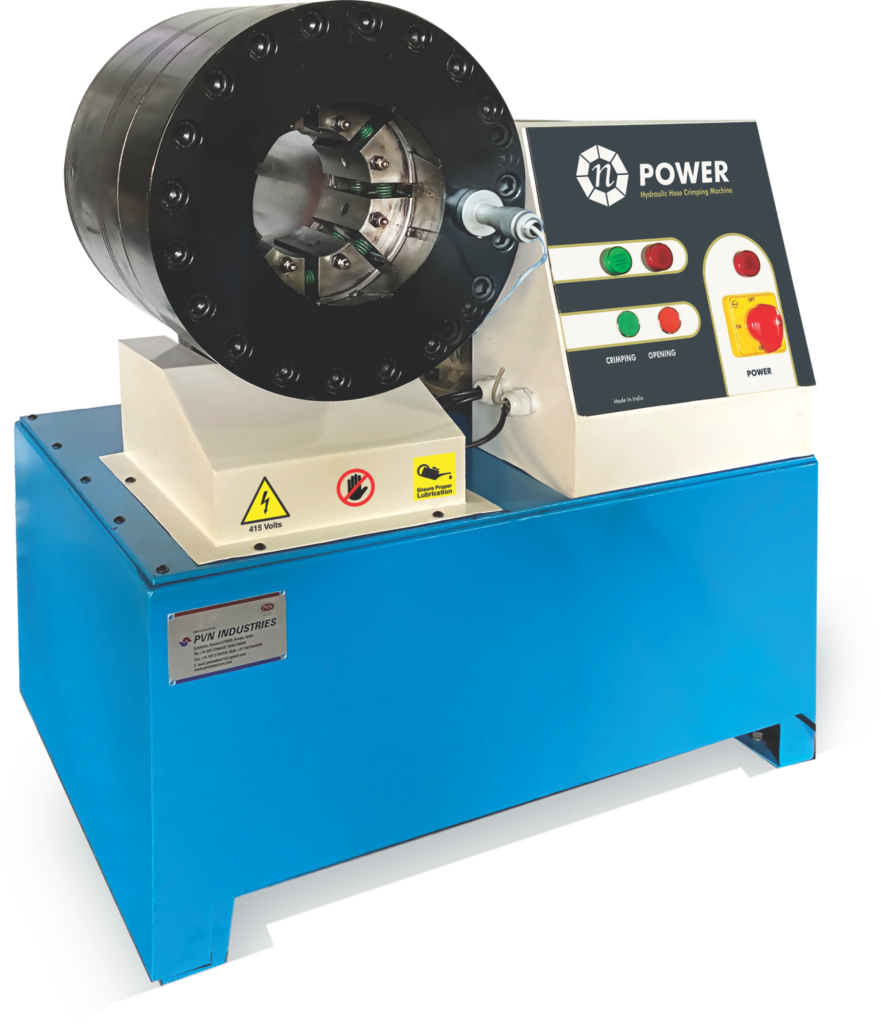

C52 – Compact Hydraulic Hose Crimping Machine

The C52 is a compact, bench-friendly crimping machine with the capacity to crimp 2-inch R2 hoses and 1-inch four-wire hoses designed for technicians who need consistent results without complexity. It has a motor HP of 3-phase 5 HP & single-phase 3 HP, and its stable hydraulic system and sturdy Indian-built frame ensure repeatable, accurate crimps throughout daily workshop operations

C52

Add to Favourites

ADD TO CART

WHERE TO BUY

SPECIFICATIONS

KEY FEATURES & HIGHLIGHT

APPLICATIONS & USE CASES

WARRANTY

REVIEWS

PEOPLE ALSO VIEWS

Specifications

Parameter	Specification (C52)
Capacity to crimp 2 wire hose	2 inches (50 mm)
Capacity to crimp 4 wire hose	1 inch (25 mm)
Power Required	3 Phase – 5 HPSingle Phase – 3 HP
Voltage	440 V / 230 V
Opening at front side	155 mm
Opening at rear side	130 mm
Maximum inside opening without dies	125 mm

Maximum inside opening with dies	Die diameter + 34 mm
Capacity of oil tank	40 litres
No. of dies	10
Size of dies	15, 19, 23, 26, 30, 34, 38, 45, 52, 62
Noise level	75 decibels
Weight of the machine	250 Kgs
Dimensions of the machine (L × W × H)	666 × 525 × 800 mm
Dimension of export packing (L × W × H)	720 × 575 × 850 mm

Specifications

Parameter	Specification (C52)
Capacity to crimp 2 wire hose	2 inches (50 mm)
Capacity to crimp 4 wire hose	1 inch (25 mm)
Power Required	3 Phase – 5 HPSingle Phase – 3 HP
Voltage	440 V / 230 V
Opening at front side	155 mm
Opening at rear side	130 mm
Maximum inside opening without dies	125 mm
Maximum inside opening with dies	Die diameter + 34 mm
Capacity of oil tank	40 litres
No. of dies	10
Size of dies	15, 19, 23, 26, 30, 34, 38, 45, 52, 62
Noise level	75 decibels
Weight of the machine	250 Kgs
Dimensions of the machine (L × W × H)	666 × 525 × 800 mm
Dimension of export packing (L × W × H)	720 × 575 × 850 mm

Key Features & Highlights

Stable hydraulic pressure for uniform crimping performance
Compact body suitable for benches and small workshop spaces
Strong Indian-built steel frame ensures long operational life
Smooth die movement for accurate and consistent deformation
Low-maintenance mechanical design suitable for continuous use
Easy hose loading and quick die change configuration
Automotive hydraulic hose replacement
General industrial maintenance and repair
Agricultural machinery service
Small OEM hose assembly units
Mobile and onsite repair operations
Service centers requiring light to moderate crimping volumes
Warranty Period: 2 Years
Warranty_PVN
Includes manufacturing defect coverage and support through NPower Care

Applications & Typical Workshop Use Cases

Hydraulic hose assembly units
Industrial maintenance shops
On-site hose repair & service
Construction equipment maintenance
Agricultural machinery service
Fabrication workshops preparing hoses for crimping

Hose skiving machines improve quality, speed up assembly prep, and reduce the risk of hose failure after crimping.

Warranty, Service & Support

Every NPOWER Hand-Operated Hose Skiving Machine comes with:

1-Year Standard Warranty
Dedicated after-sales support
Spare parts and accessory availability
Technical guidance for operation and maintenance

Ensures long-term reliability even in continuous workshop environments.

KEY FEATURES & HIGHLIGHTS

Stable hydraulic pressure for uniform crimping performance
Compact body suitable for benches and small workshop spaces
Strong Indian-built steel frame ensures long operational life
Smooth die movement for accurate and consistent deformation
Low-maintenance mechanical design suitable for continuous use
Easy hose loading and quick die change configuration
Automotive hydraulic hose replacement
General industrial maintenance and repair
Agricultural machinery service
Small OEM hose assembly units
Mobile and onsite repair operations
Service centers requiring light to moderate crimping volumes
Warranty Period: 2 Years
Warranty_PVN
Includes manufacturing defect coverage and support through NPower Care

APPLICATIONS & USE CASES

Hydraulic hose assembly for industrial machinery
Mobile workshop and field repair operations
Automotive and agricultural equipment maintenance
OEM production lines requiring consistent crimp quality

WARRANTY

All N Power machines come with a 12-month warranty covering manufacturing defects. Warranty does not cover damage caused by misuse, unauthorized modification, or normal wear and tear. Contact PVN Industries for warranty claims and service support.
