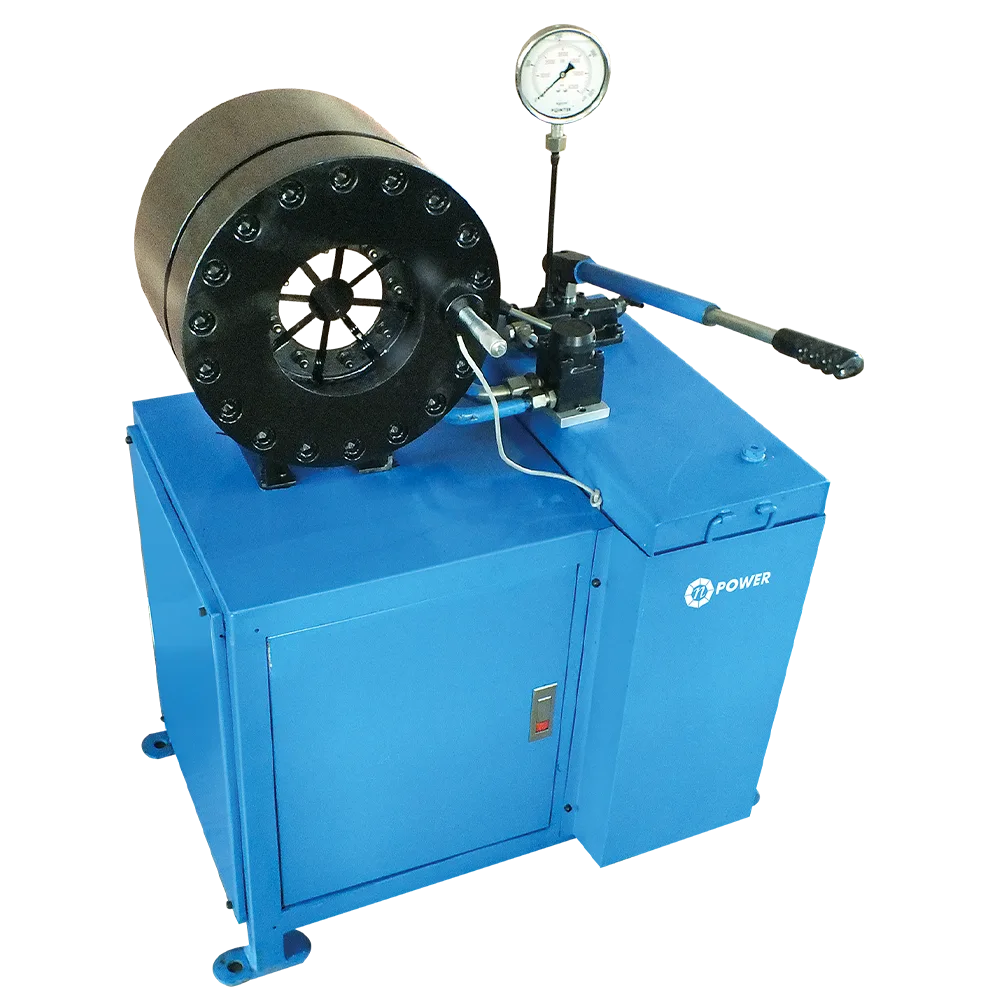

A50 – Manual Hydraulic Hose Crimping Machine

1/2

The A50 offers controlled manual crimping with a capacity of 2 wire hose- 2 inches (50 mm) & 4 wire hose- 1 inch (25 mm), known for it’s performance for technicians working in remote or power-limited environments with a crimping capacity . Its rugged Indian construction ensures dependable results wherever the job is.

A50

Add to Favourites

ADD TO CART

WHERE TO BUY

SPECIFICATIONS

KEY FEATURES & HIGHLIGHT

APPLICATIONS & USE CASES

WARRANTY

REVIEWS

PEOPLE ALSO VIEWS

Specifications

Capacity to crimp 2 wire hose	2 inches (50 mm)
Capacity to crimp 4 wire hose	1 inch (25 mm)
Power Required	Double Piston Operated Hand Pump
Voltage	440 V / 230 V
Opening at front side	155 mm
Opening at rear side	130 mm
Maximum inside opening without dies	125 mm
Maximum inside opening with dies	Die diameter + 34 mm

Capacity of oil tank	40 litres
No. of dies	10
Size of dies	15, 19, 23, 26, 30, 34, 38, 45, 52, 62
Noise level	75 decibels
Weight of the machine	250 Kgs
Dimensions of the machine (L × W × H)	666 × 525 × 800 mm
Dimension of export packing (L × W × H)	720 × 575 × 850 mm

Specifications

Capacity to crimp 2 wire hose	2 inches (50 mm)
Capacity to crimp 4 wire hose	1 inch (25 mm)
Power Required	Double Piston Operated Hand Pump
Voltage	440 V / 230 V
Opening at front side	155 mm
Opening at rear side	130 mm
Maximum inside opening without dies	125 mm
Maximum inside opening with dies	Die diameter + 34 mm
Capacity of oil tank	40 litres
No. of dies	10
Size of dies	15, 19, 23, 26, 30, 34, 38, 45, 52, 62
Noise level	75 decibels
Weight of the machine	250 Kgs
Dimensions of the machine (L × W × H)	666 × 525 × 800 mm
Dimension of export packing (L × W × H)	720 × 575 × 850 mm

Key Features & Highlights

Manual hydraulic action for power-free operation
Stable mechanical system ensures uniform crimping
Compact and portable for field service
Strong Indian-built frame for long-term durability
Simple die change and easy hose alignment
Minimal maintenance with high reliability
Agricultural equipment repair
On-site hydraulic maintenance
Field service vans and mobile units
Rural and remote workshop operations
Light industrial and low-volume hose assembly
2 Years:
Warranty_PVN
Supported through NPower Care for servicing and guidance.

Applications & Typical Workshop Use Cases

Hydraulic hose assembly units
Industrial maintenance shops
On-site hose repair & service
Construction equipment maintenance
Agricultural machinery service
Fabrication workshops preparing hoses for crimping

Hose skiving machines improve quality, speed up assembly prep, and reduce the risk of hose failure after crimping.

Warranty, Service & Support

Every NPOWER Hand-Operated Hose Skiving Machine comes with:

1-Year Standard Warranty
Dedicated after-sales support
Spare parts and accessory availability
Technical guidance for operation and maintenance

Ensures long-term reliability even in continuous workshop environments.

KEY FEATURES & HIGHLIGHTS

Manual hydraulic action for power-free operation
Stable mechanical system ensures uniform crimping
Compact and portable for field service
Strong Indian-built frame for long-term durability
Simple die change and easy hose alignment
Minimal maintenance with high reliability
Agricultural equipment repair
On-site hydraulic maintenance
Field service vans and mobile units
Rural and remote workshop operations
Light industrial and low-volume hose assembly
Warranty Period: 2 Years
Warranty_PVN
Supported through NPower Care for servicing and guidance.

APPLICATIONS & USE CASES

Hydraulic hose assembly for industrial machinery
Mobile workshop and field repair operations
Automotive and agricultural equipment maintenance
OEM production lines requiring consistent crimp quality

WARRANTY

All N Power machines come with a 12-month warranty covering manufacturing defects. Warranty does not cover damage caused by misuse, unauthorized modification, or normal wear and tear. Contact PVN Industries for warranty claims and service support.
