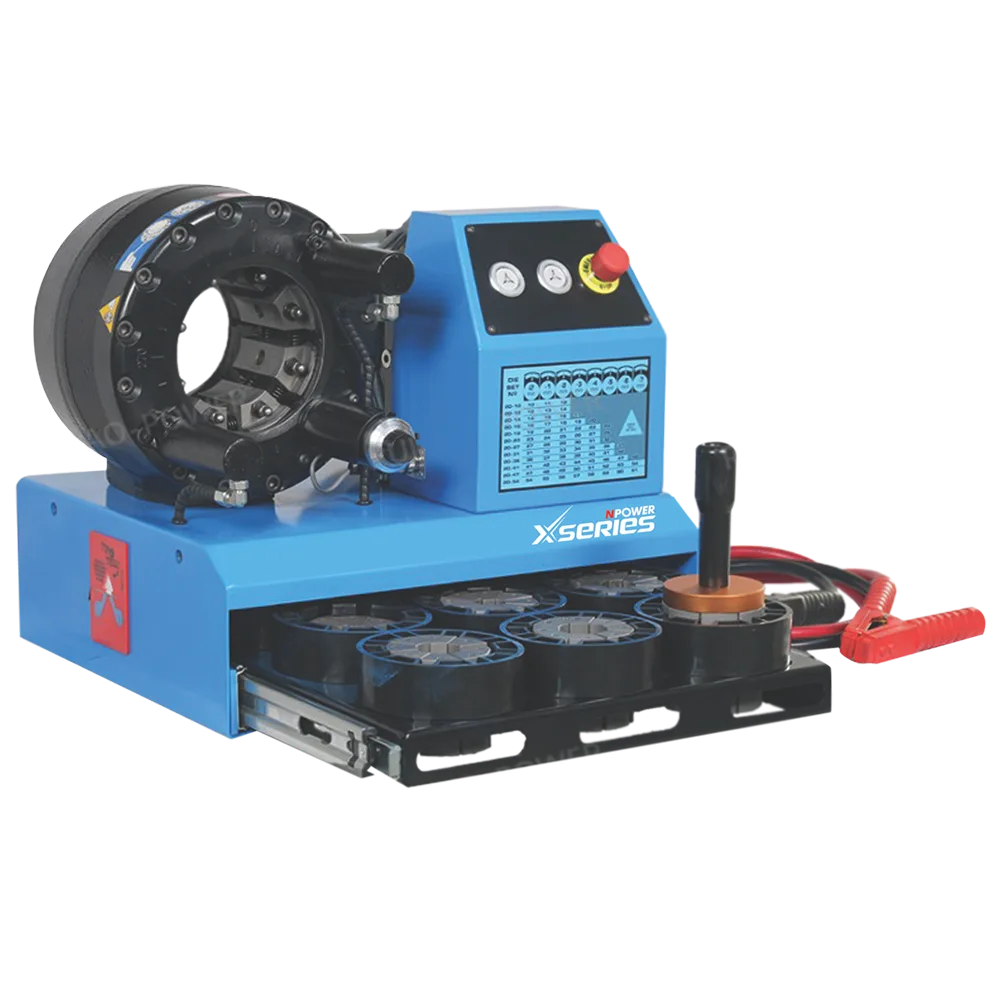

Hydraulic Hose Crimping Machine

The X52 DC is a DC motor–driven hydraulic hose crimping machine designed for high-capacity crimping in mobile workshops, service vehicles, and field repair environments. It delivers a strong, consistent crimping force while operating independently of fixed electrical infrastructure. Crimping capacity of 2-wire hoses and 4-wire hoses, 1/4" to 2 inches, battery voltage- 24V DC. Built in India and engineered for demanding on-site conditions, the X52 DC combines portability with industrial-grade performance.

X52 DC

Add to Favourites

ADD TO CART

WHERE TO BUY

SPECIFICATIONS

KEY FEATURES & HIGHLIGHT

APPLICATIONS & USE CASES

WARRANTY

REVIEWS

PEOPLE ALSO VIEWS

Specifications

Voltage	24 V DC
Type of control system	Semi-Automatic
Crimping capacity of 2 wire hose	$1/4"$ to 2 inches (6 mm - 50 mm)
Crimping capacity of 4 wire hose	$1/4"$ to 2 inches (6 mm - 50 mm)
Power required	4.5 HP
Opening at front side	160 mm
Maximum inside opening without dies	132 mm
Maximum opening with dies	Dia diameter plus 33 mm

Opening at rear side	150 mm
Capacity of oil tank	9 litres
No of dies	13
Sizes of dies	14, 16, 19, 22, 26, 30, 34, 39, 45, 51, 57, 63, 69
Noise Level	$< 75$ db
Weight of the machine	230 kgs
Dimension of the machine	$570 \times 520 \times 530$ mm
Dimension of export packing	$780 \times 680 \times 840$ mm

Specifications

Voltage	24 V DC
Type of control system	Semi-Automatic
Crimping capacity of 2 wire hose	$1/4"$ to 2 inches (6 mm - 50 mm)
Crimping capacity of 4 wire hose	$1/4"$ to 2 inches (6 mm - 50 mm)
Power required	4.5 HP
Opening at front side	160 mm
Maximum inside opening without dies	132 mm
Maximum opening with dies	Dia diameter plus 33 mm
Opening at rear side	150 mm
Capacity of oil tank	9 litres
No of dies	13
Sizes of dies	14, 16, 19, 22, 26, 30, 34, 39, 45, 51, 57, 63, 69
Noise Level	$< 75$ db
Weight of the machine	230 kgs
Dimension of the machine	$570 \times 520 \times 530$ mm
Dimension of export packing	$780 \times 680 \times 840$ mm

Key Features & Highlights

DC motor–driven hydraulic system for mobile and off-grid operation
High crimping force suitable for medium to large hydraulic hoses
Stable pressure control for uniform and repeatable crimps
Quick-release die system for faster job changeovers
Compact, rugged structure ideal for service trucks and field units
Industrial-grade pumps and valves for long service life
Designed to perform reliably in harsh outdoor environments
1-year standard warranty covering manufacturing defects
Dedicated after-sales support from NPower
Technical assistance and guidance for proper operation
Easy access to service parts for uninterrupted machine operation
Mobile hydraulic hose repair vans
On-site maintenance for construction and mining equipment
Emergency hose replacement in remote locations
Agricultural machinery field servicing
Industrial breakdown maintenance teams
Service operations where AC power is unavailable or unreliable

Applications & Typical Workshop Use Cases

Hydraulic hose assembly units
Industrial maintenance shops
On-site hose repair & service
Construction equipment maintenance
Agricultural machinery service
Fabrication workshops preparing hoses for crimping

Hose skiving machines improve quality, speed up assembly prep, and reduce the risk of hose failure after crimping.

Warranty, Service & Support

Every NPOWER Hand-Operated Hose Skiving Machine comes with:

1-Year Standard Warranty
Dedicated after-sales support
Spare parts and accessory availability
Technical guidance for operation and maintenance

Ensures long-term reliability even in continuous workshop environments.

KEY FEATURES & HIGHLIGHTS

DC motor–driven hydraulic system for mobile and off-grid operation
High crimping force suitable for medium to large hydraulic hoses
Stable pressure control for uniform and repeatable crimps
Quick-release die system for faster job changeovers
Compact, rugged structure ideal for service trucks and field units
Industrial-grade pumps and valves for long service life
Designed to perform reliably in harsh outdoor environments
1-year standard warranty covering manufacturing defects
Dedicated after-sales support from NPower
Technical assistance and guidance for proper operation
Easy access to service parts for uninterrupted machine operation
Mobile hydraulic hose repair vans
On-site maintenance for construction and mining equipment
Emergency hose replacement in remote locations
Agricultural machinery field servicing
Industrial breakdown maintenance teams
Service operations where AC power is unavailable or unreliable

APPLICATIONS & USE CASES

Hydraulic hose assembly for industrial machinery
Mobile workshop and field repair operations
Automotive and agricultural equipment maintenance
OEM production lines requiring consistent crimp quality

WARRANTY

All N Power machines come with a 12-month warranty covering manufacturing defects. Warranty does not cover damage caused by misuse, unauthorized modification, or normal wear and tear. Contact PVN Industries for warranty claims and service support.
